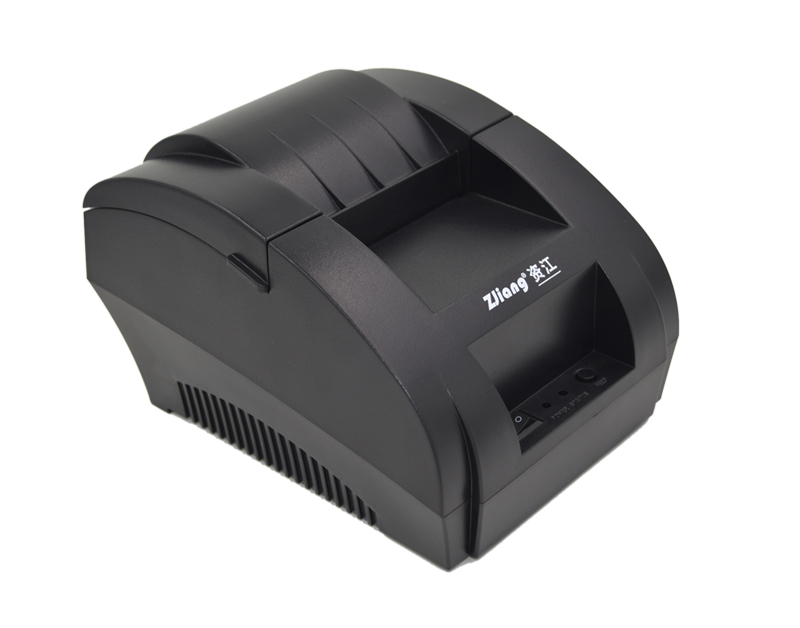

ZJ-5890F Thermal Printer

Printer Manual Printer Driver

1.suitable for all types of commercial detail POS systems

2.light in weight and smart in shape

3.high-quality printing and low cost

4.low noise and high-speed printing

5.support cash drawer driver

	Specifications

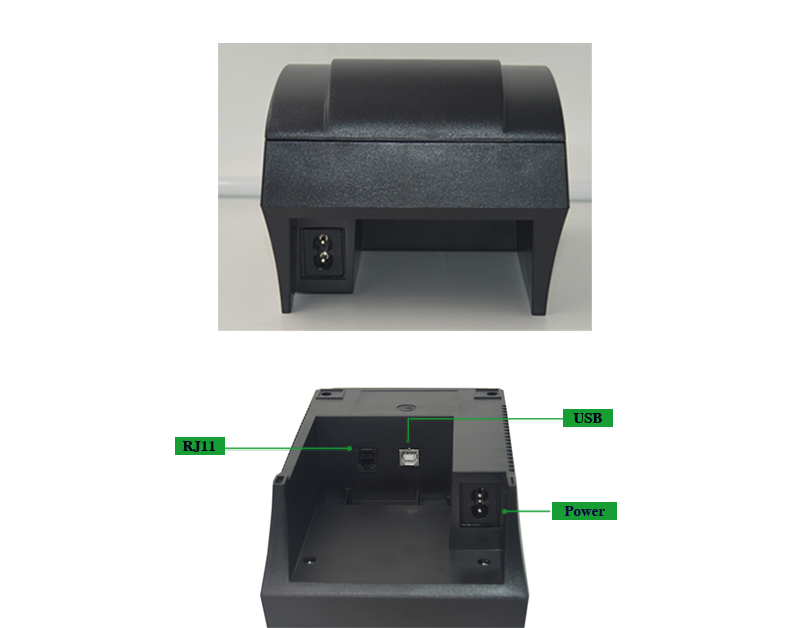

	Interfaces	USB
	Print Comand	ESC/POS
	Print Method	Thermal Line Printing
	Print Speed	70mm/s
	Resolution	203DPI (8dot/mm)
	No. of Total Dots	384 dots/Line
	Print Width	48mm
	Character Size	1.5 x 3.0mm (W x H)/3.0 x 3.0mm (W x H)
	Print Font	12 x 24; 24x 24
	Character Set	Alphanumeric /Chinese Kanji
	Data Buffer	UP to 20K bytes
	Compatible OS	Window Systems; Linux Operate Systems
	Paper
	Type	Roll Paper
	Width	58.0±0.1mm
	Roll Diameter	φ≤50mm
	Paper Thickness	0.06-0.08mm
	Electrical
	Adapter Voltage	DC 9V/3A
	Cash Drawer Control	DC 12V/1A
	Print Head	Reliability
	Print Reliability	100km
	Physical
	Dimension	17.51311(cm)
	Unit Weight	0.85kg ( including accessories: manual, cable, test paper)
	Color	Black, white
	Pieces Per CTN	18pieces
	CTN Dimension	494240(cm)
	Carton Weight	16kg
	Environmental
	Temperature	Working: 0 to 45 Degrees
	Humidity	Working: 10%-80%
	Warranty	12 months at least
	Certificates	CE& FCC ROHS / ISO9001:2008
