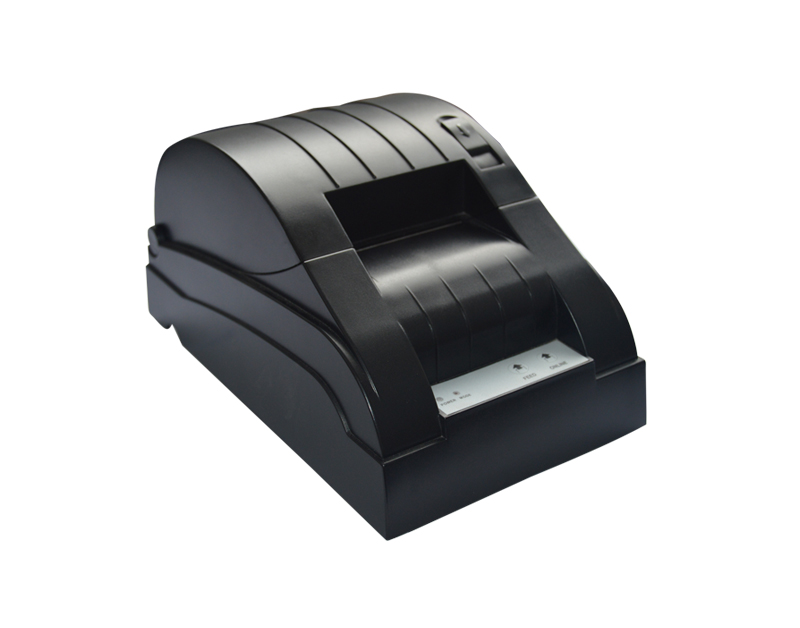

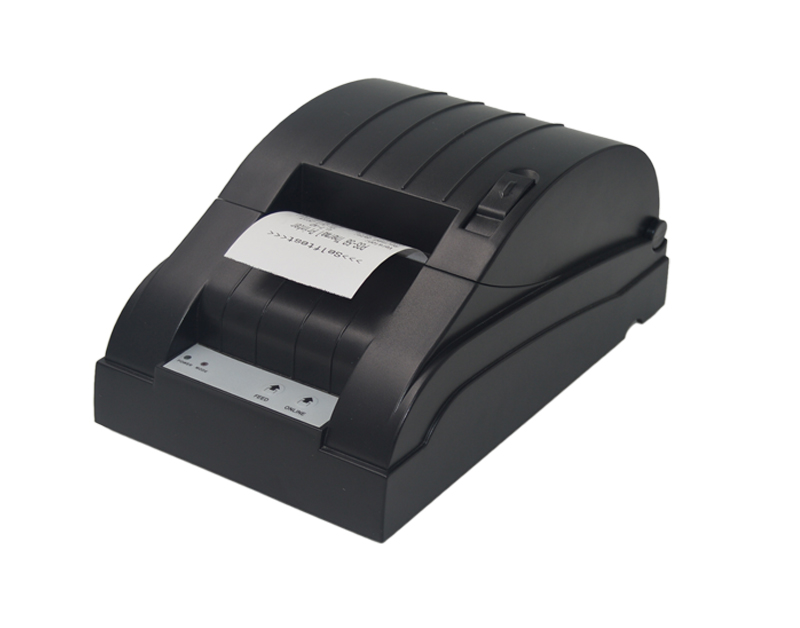

ZJ-5870 Thermal Printer

Product Model	ZJ-5870
Print Method	Thermal line printing
Interface Type	USB / Ethernet / LPT / Serial / Bluetooth (optional)
Style	Black And White
Max Paper Size	58mm

Printer Manual Printer Driver

1.Suitable for all type of commercial retail POS systems

2.Lightweight and Ease to Portable

3.Beautiful Shape

4.Low cost and High-quality thermal printing

5.Low-noise and High-speed thermal printing

6.Support Cash drawer drive

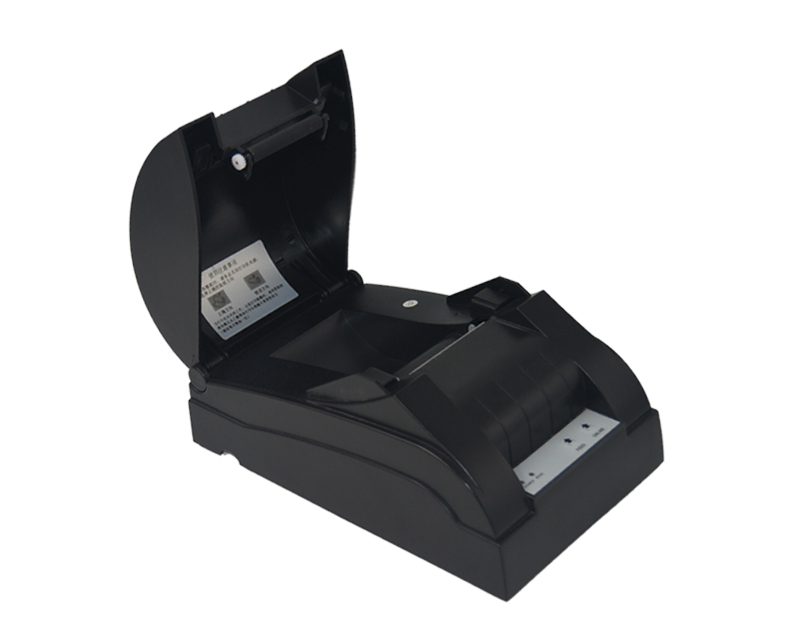

7.Easy paper-roll installation

8.Easy maintenance and Rational structure

9.Small-power waste and Low-run cost (No ribbons,ink cartridges)

	Specifications
	Interfaces	USB / Ethernet / LPT / Serial / Bluetooth (optional)
	Print Comand	ESC/POS
	Print Method	Thermal Line Printing
	Print Speed	70mm/s
	Resolution	203DPI (8dot/mm)
	No. of Total Dots	384 dots/Line
	Print Width	48mm
	Character Size	1.5 x 3.0mm (W x H)/3.0 x 3.0mm (W x H)
	Print Font	12 x 24; 24x 24
	Character Set	Alphanumeric /Chinese Kanji
	Data Buffer	UP to 20K bytes
	Compatible OS	Window Systems ; Linux Operate Systems; Android & IOS Operate Systems
	Paper
	Type	Roll Paper
	Width	58.0±0.1mm
	Roll Diameter	φ≤50mm
	Paper Thickness	0.06-0.08mm
	Electrical
	Charging mode	DC 9V/3A
	Cash Drawer Control	DC 12V/1A
	Print Head	Reliability
	Print Reliability	100km
	Physical
	Dimension	21.51113.6(cm)
	Unit Weight	1.5kg ( including accessories: manual, cable, test paper)
	Color	Black
	Pieces Per CTN	8pieces
	CTN Dimension	514932(cm)
	Carton Weight	15kg
	Environmental
	Temperature	Working: 0 to 45 Degrees
	Humidity	Working: 10%-80%
	Warranty	12 months at least
	Certificates	CE& FCC ROHS / ISO9001:2008
